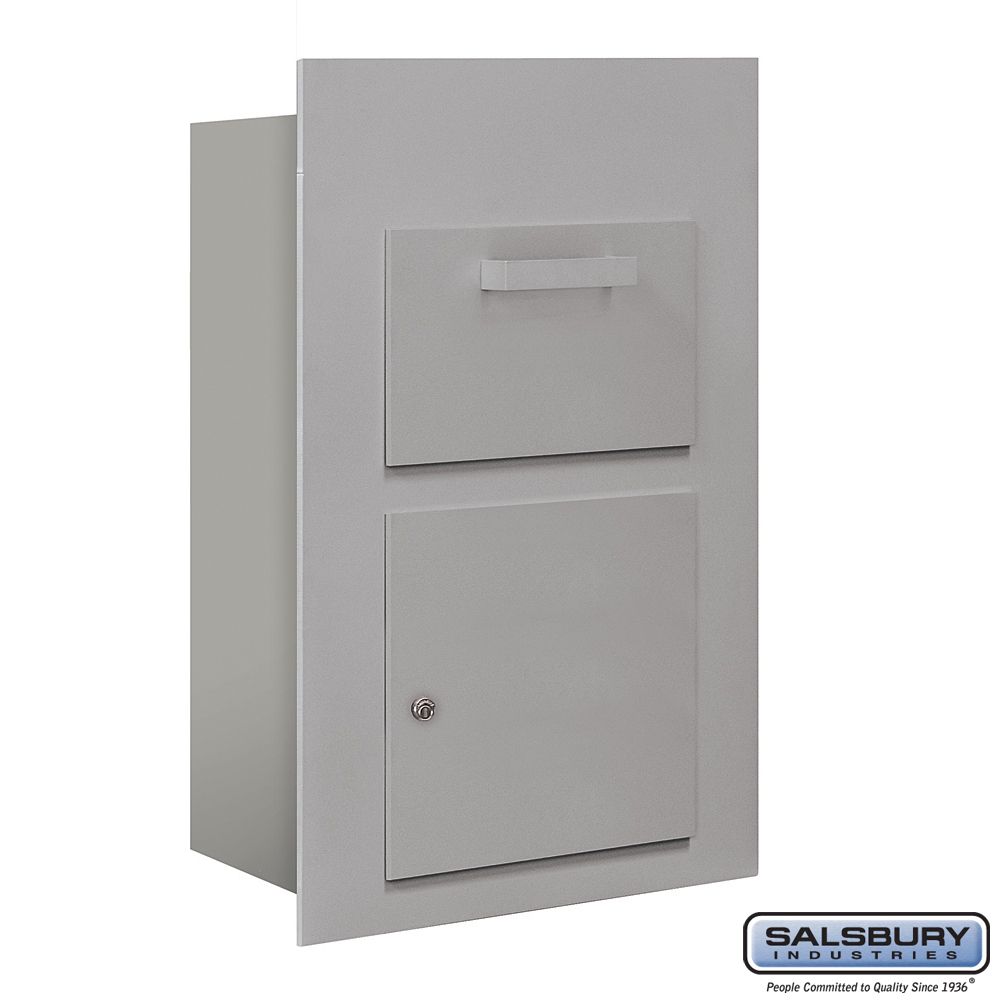

Salsbury 3600C5-FU Collection Unit For 5 Door High 4B+ Mailbox

All Salsbury 3600 series are made entirely of aluminum. The USPS approved 4B+ custom horizontal mailboxes are available in four (4) different mailbox door sizes and three (3) different parcel locker door sizes. Each aluminum mailbox door includes a five (5) pin cylinder cam lock with two (2) keys and a 2" W x 5/8" H clear plastic card holder (card included) to identify the tenant’s name and/or box number.

The mailbox compartments are made of sheet aluminum. 3600 series 4B+ custom horizontal mailboxes can integrate different combinations of mailbox and parcel locker doors and are available in four (4) contemporary colors - aluminium, bronze, gold, and sandstone. Custom colors are available as an option upon request. Matching collection units (5, 6 and 7 doors high) are also available. Custom horizontal mailboxes are ideal for apartments, condominiums, commercial buildings, colleges and schools and many other applications.

If Front Loading:
Door panel swings on a continuous hinge. One mailbox opening (A and B doors only) is required for a master postal or commercial lock and cannot be used for mail distribution. Units include factory installed 3/4" W x 1/4" D trim and a solid rear cover.

If Rear Loading:
Mailboxes can be used for either USPS access (master postal lock not required) or private access (master commercial lock not required). All openings are usable. Units include factory installed 3/4" W x 1/4" D trim and a removable rear cover.

Model: 3600C5
Description: Collection Unit (for 5 door high unit)
Door Size: 21" W x 29-3/4" H x 12" D
Weight: 60 lbs.

PARCEL LOCKERS can be integrated into a 3600 series mailbox system and are a convenient way to receive packages on site. Parcel lockers are fit with a two (2) key security system that allows the USPS or an individual to deliver a parcel to the locker and place a parcel locker key in the recipient’s mailbox. Once the recipient opens the parcel locker, the key is automatically retained in the lock until it is removed with a control key.

4B+ Custom Horizontal Mailbox Options

• Plexiglass window (#3671) 2" W x 5/8" H
• Mail slots (#3669)
• Standard mail slot sizes for 3600 series:
  A Door - 5-1/2" W x 3/4" H
  B Door - 12" W x 3/4" H
  C Door - 5-1/2" W x 3/4" H
  D Door - 12" W x 3/4" H
  (for installations not serviced by the USPS)
• Custom slot sizes are available upon request
• Card holder - clear plastic - card and metal insert included (#3697)
• Custom finish – aluminium, bronze, gold, sandstone (#3666)
• Custom engraved placards (#3667)
• Custom engraved door – regular (door will be solid - no card holder) (#3668)
• Custom engraved door - black filled (door will be solid - no card holder) (#3674)
• Custom engraving on collection unit – regular (#3665)
• Custom engraving on collection unit - black filled (#3670)
• Self-adhesive numbers - sheets of 100 (#3695)
• 4B+ Master door security retrofit kit (#3696)

Door and Compartment Identification
Each mailbox door includes a 2" W x 5/8" H clear plastic card holder (#3697) to identify the tenant’s name and/or box number. Self-adhesive numbers (1-3000 available) are supplied upon request with each order. Custom identification systems are available as an option upon request. Label holders (#1070) neatly organize and identify the front/rear of the mailbox compartments and are available as an option upon request.

Locks

• Each mailbox door includes a five (5) pin cylinder cam lock with two (2) keys (1,000 different key changes). (#3690)
• Three (3) digit single dial combination lock with spring latch and automatic throw-off (#3686)
  (combination numbers can be changed by owner) (for installations not serviced by the USPS)
• Thumb latch (in lieu of standard lock) (#3689)
• Additional keys per lock when ordering (#3698)
• Custom lock installation - cylinders provided by owner - (100) door minimum (#3693)
• Key blanks - box of 50 - for 3600 series
