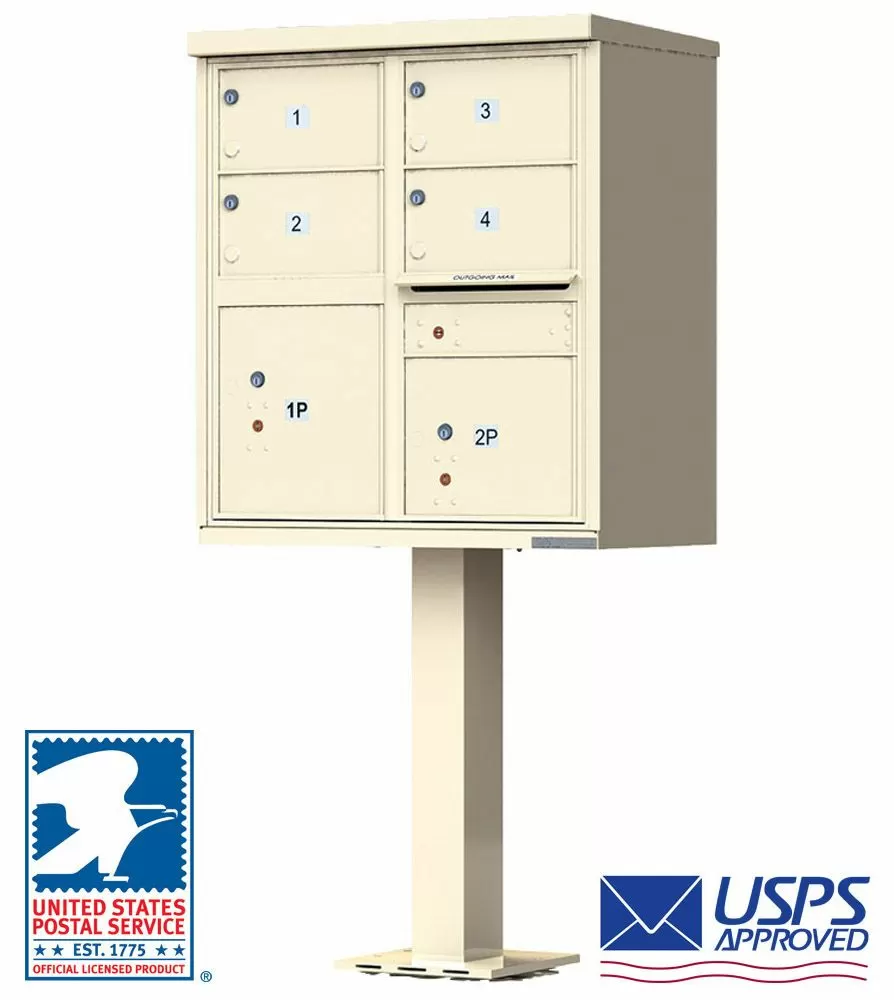

4 Door Cluster Mailbox CBU with 2 Parcel Lockers, Pedestal Included - USPS Approved

Name: 4 Door Cluster Mailbox CBU with 2 Parcel Lockers, Pedestal Included - USPS Approved
Brand: Budget Select
SKU: CBU-4T5
Availability: InStock

Availability:

Out of stock

SKU

CBU-4T5

Notify me when this product is in stock

Standard: usually ships in 3-5 days
Custom: usually ships in 1-2 weeks

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

Check items to add to the cart or

USPS Approved and Ready

CBU's are Pre-approved

Pre-approved by the USPS, cluster mailboxes are considered the industry standard when it comes to outdoor, centralized mail delivery.

Installation Location

If you are involved in a new construction development, you have probably already consulted or will consult with your local postmaster regarding the placement (location) of your CBU. If not, we recommend it.

Master Lock Installation

After installing the CBU, follow-up with your local post office and the USPS will install their master lock for the main access door. Note: the USPS provides the master lock and only they have the keys to it.

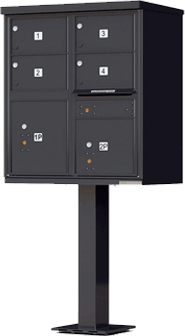

Four (4) Large Tenant Doors

Includes-the-VogueClassic-Decorative-Cap-Pedestal

The 4 Door CBU Mailbox with Extra Large Tenant Doors (1570-4T5) is designed for residential and commercial developments as well as for businesses. It makes use of four (4) large mail slots for that extra room retailers and other commercial businesses need for their incoming and outgoing post, as well as two (2) large parcel lockers to securely hold package deliveries. The incoming mail slot dimensions are: 6 - ½ inches High x 12 inches Wide x 15 inches Deep.

Five Year Warranty

All cluster box units (CBUs) sold on BudgetMailboxes.com come with a Five (5) Year Warranty.

Florence Manufacturing provides a five (5) year Warranty on its products from the date of purchase from an Authorized Florence Dealer (i.e., BudgetMailboxes.com). For more info, refer to the Florence Mailboxes Warranty sheet.

New USPS Standard

Obsolete: NDCBUs are no longer permitted for replacement or new installations

New CBUs accommodate both mail and packages while providing greater security.

Developed and approved by the USPS in 2005, the new cluster box unit specification (right image) became the standard for all manufacturers and replaces both the outdated Neighborhood Delivery Collection Box Unit (NDCBU) and the "E" series CBU.

While the original NDCBU introduced convenience for residents and letter carriers alike, it is no longer permitted for replacement or new installations. These outdated units fall into disrepair as they age and are, in many cases, quite dilapidated. The newer 2005 specifications boast a thoroughly tested design that provides better security and durability over time.

CBU High-Security Standards

All CBUs are designed to deter mail theft attempts using the following features:

All units are made of high grade, industrial, aircraft-quality aluminum.
On the outside of the unit, there are no removable fasteners. This prevents tampering.
The cabinet is made using high-precision robotic welding.

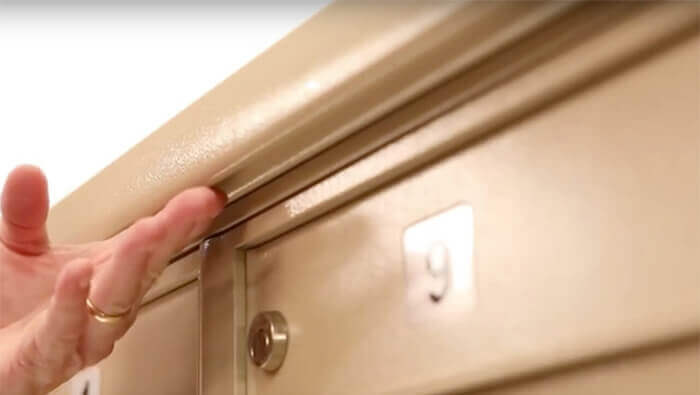

The CBU uses a sloped roof for water run-off and a drip-edge in the front to protect the individual slots from rainwater.
The master-loading door has a vertical bridge with an overlap that eliminates the gap between the two master-loading doors -- in other words, there are no pry-points on the unit.
Heavy-duty, zinc-plated cam locks are tamper proof and latch through the aluminum frame for added security.

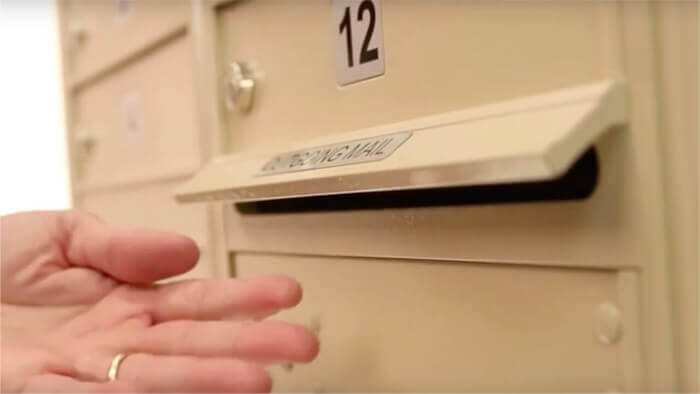

The outgoing mail slot uses a sloping hood to prevent a person from reaching in with their hand.

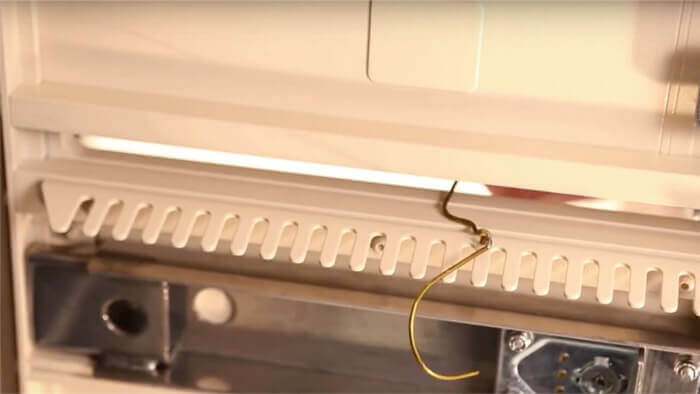

The aluminum, anti-fish comb deters thieves from reaching into the slot with coat hangers or other prying tools.

Nationwide Mailbox Installation Services

Our Mailbox Installation Service

Licensed & Insured
Trained Installation pro
Available in your area

View Details Below
Nationwide Mailbox Installation Services

On our CBU product pages, you will see an option labeled, "Need professional mailbox installation?" By making this option available on the product page, our goal is to be the one-stop shop for your cluster mailbox needs. We offer the following installation options:

Option 1 - Technician installs new pedestal-mounted mailbox

In this scenario, the installer drills new anchor bolts into existing concrete and mounts a new pedestal mailbox

Option 2 - Technician installs new pedestal-mounted mailbox and disposes of an old pedestal-mounted mailbox

In this scenario, the installer removes old anchor bolts and replaces them with new ones. They will install the pedestal-mounted mailbox and dispose of the old one.

Mailbox Installation FAQs

What's included in mailbox installation?

Unpacking new CBU mailbox purchased from BudgetMailboxes.com
Installation of CBU pedestal onto the existing concrete pad* via one of the options listed above
Mounting CBU box to pedestal

Are your installers licensed and insured?

Yes. We only work with licensed and insured mailbox installers.

Do you offer service in my area?

Yes, unless you are outside the contiguous US. We offer installation services for our customers within the 48 contiguous United States.

Will the installer apply lettering to the mailbox?

No. Installation does not include applying any decals that are shipped loose with your CBU. You will need to apply the decals after the unit is installed.

Will the installer remove my old cluster mailbox?

Yes! Our installers will remove and dispose of your old pedestal-mounted CBU. This convenient service is offered at a low, flat rate of $150.00 per unit needing disposal.

Why should I hire a pro to install my mailbox?

Installing a pedestal mailbox can be complicated. A professional can take care of it more efficiently, saving you time and money.

Will the installer supply any materials I need to secure my mailbox?

No, you will need to make the anchor bolts available when the installer arrives. Most installations use expansion anchor bolts for existing concrete, which can easily be added to your CBU order directly from the product page!

Please also ensure that the location is near a usable power source, if possible.

Will Budget Mailboxes communicate with the installer on my behalf?

Yes. We will confirm your details with our installation provider network, CS Hudson. CS Hudson will then contact you to schedule your appointment. While it is expected that the customer deals with the installer on location, we take it as our responsibility to communicate with the installer on your behalf prior to making the appointment.

Will my mailbox be installed on the same day as delivery?

No. Same-day installation is not available. Installation will be scheduled after the delivery of your mailbox. In most cases, installation is completed within one week following delivery.

* It is the customer's responsibility to ensure that the location for installed cluster mailboxes meets USPS requirements. Customers should contact their local post office to receive approval for the installation, and for any questions about their specific requirements when installing CBUs at the intended location.

Don't need USPS delivery? Convert to private use.

If you don't need USPS delivery and you intend to use the CBU for private use (where a company or organization will need access to open the master door for delivery), then you need the Postal to Private Conversion Kit, which can be purchased via the dropdown options section of any CBU.

Under the Option labeled "Will the USPS be delivering to this mailbox?", select "No, this box is for private use...". Private delivery CBUs are typical where mail delivery is handled by private distribution within the company or organization.

Lead Times

All orders ship directly from the factory floor to ensure the quickest available delivery.
BudgetMailboxes.com takes delivery dates and deadlines seriously. We update our lead time projections frequently in an effort to provide you with the most accurate projections. Currently, we estimate the following lead time:
Standard - Usually ships in 3 business days
Custom - Usually ships in 1 to 2 weeks

Door ID Options

Decals: All CBUs come standard with silver adhesive decals 1.5 inches high by 1.75 inches wide. Black lettering can contain up to five characters per decal.

Engraving: Custom engraving utilizes the USPS Standard US Block font with up to 12 characters per line. This 3/4 inch high engraving may be created with or without one of two color fill options (white or black).

See this info sheet for more details on door ID options.

Note: CBUs selected with custom decals or engraving usually ship in three (3) weeks. We cannot rush orders for units purchased with custom numbering.

Optional Anchor Bolts

anchor L-bolts (for wet concrete)

expansion anchor bolts (for existing concrete)

If you need anchor bolts for your CBU installation, add them from the dropdown options above the Add to Cart button.

Question: How do I know if I need anchor bolts?

Answer: You will need anchor bolts to install the CBU pedestal. If you plan to install your bolts immediately after pouring new, wet concrete, then you can purchase the L-bolts. Or, if you plan to install the CBU pedestal into dried or existing concrete, you will need the expansion bolts.

Question: What is the difference between the two different types of bolts?

Answer: The L-bolts for pedestal installation are specifically for installations where new concrete is being poured. For installing your CBU in existing concrete, you will need the expansion anchor bolts for existing concrete.

Each bolt kit includes everything required to mount the CBU pedestal to concrete.
L-Bolt specs:
- 1/2 inch diameter.
- 2 by 7 inches overall.
- See detailed bolt specifications for more info.
Expansion Bolt specs:
- 1/2 inch diameter.
- 5 1/2 inches long

Hardware kit includes four (4) stainless steel anchor bolts and four (4) standard fasteners.
- Vandal proof fasteners can be purchased for added security.

*Note: actual measurements between bolts should be confirmed prior to installation. BudgetMailboxes.com is not liable for faulty installation due to inaccurate measurements.

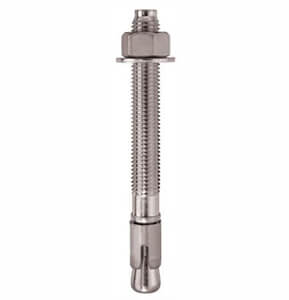

Expansion Anchor Bolts Overview

When securing the CBU pedestal to a dried or existing concrete pad, it is critical to use the recommended class of hardware to guarantee the strength and safety of the installation. Galvanized or Stainless Steel masonry anchor bolts (1/2 in. x 5 1/2 in. min. length) are the approved hardware to be used when installing a CBU pedestal to an outdoor concrete location.

When installed correctly and to recommended torque specifications, these bolts create the strongest possible bond while retaining their integrity and tensile strength. However, even the finest hardware can only function as well as it is installed. Please follow the specific guidelines and manufacturer's recommendations when installing these anchors. For an installation tutorial, please review the Installation Walkthrough on this page.

Optional Vandal-Proof Fasteners for Added Security

Vandal-Proof, breakaway fasteners prevent mailbox theft by making it nearly impossible for would-be thieves to remove the pedestal using common tools. How does it work?

After you have successfully installed your cluster mailbox at the desired and USPS approved location:

Apply the breakaway fasteners with a traditional wrench or socket.
The top fastener breaks off after installation, leaving you with an installed fastener with no drive.

Your CBU pedestal will now be permanently secured at your desired location.

** Important: these vandal-proof fasteners are easy to install but very difficult to remove. This is what makes them a High-Security feature. Contact us if you have any questions. **

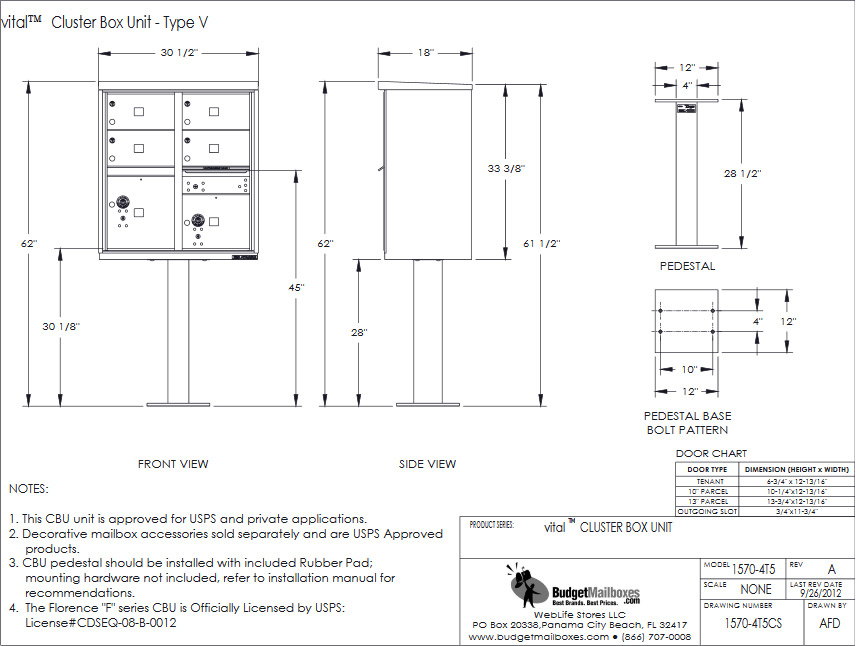

Technical Specifications (Dimensions, etc.)

The top of the cluster mailbox (the crown) is 30.5 inches wide by 18.5 inches deep. The cluster box itself measures 30.5 inches wide by 16.75 inches deep by 48.25 inches high. Including the pedestal, the total unit height is 62 inches. For more detailed specifications, please view this Technical Drawing.

Color Options

The Florence Mailboxes 4 Door CBU is offered in four color variations: Sandstone, Dark Bronze, Black, and Postal Grey.

Sandstone is the most popular color option and is considered the new architectural standard. All finishes are powder-coated and corrosion-resistant. If you need to purchase a different color, you can view our selection of variations in product options section.

Sandstone

Dark Bronze

Black

Postal Grey

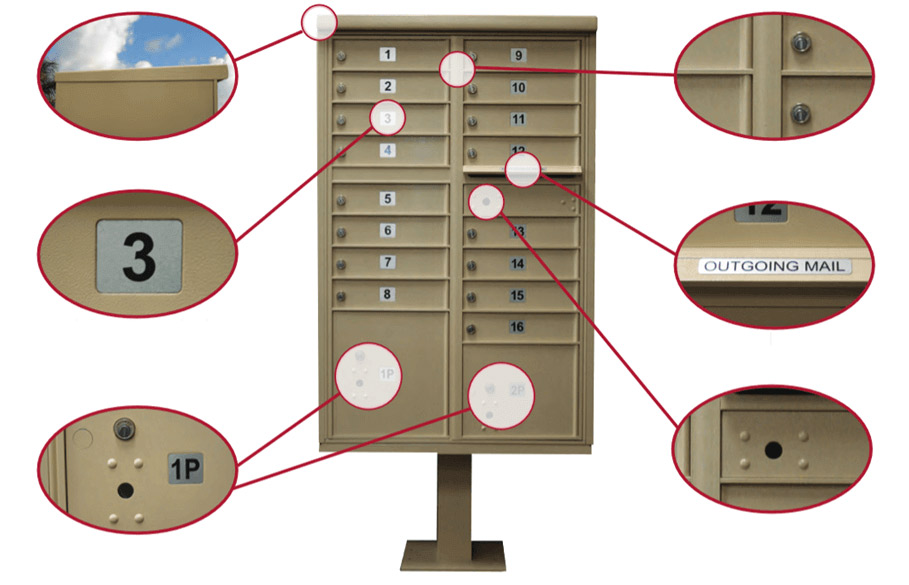

Design and Other Specifications

The 4-Door CBU includes two (2) fully integrated parcel lockers and a matching pedestal. One additional compartment is labeled "Outgoing Mail" and includes a weather protection flap and an 3 in. H x 12 in. W . H mail slot.

The CBU also features individually numbered mail compartments and a mail carrier access door for USPS provided master arrow lock.The unit itself is constructed of high-grade, heavy-duty, aircraft aluminum while the hardware is constructed of stainless steel. All CBUs on BudgetMailboxes.com are manufactured here in the USA.

Sloped top for moisture runoff

Standard silver adhesive identification decals contain up to five characters (engraving optional)

Fully Integrated parcel locker(s) with key trapping lock

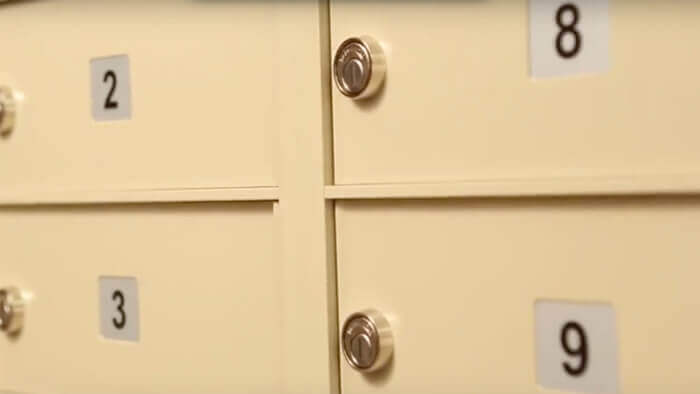

Interlocking, overlapping seams and tight clearances to prevent prying

Integrated Outgoing Mail Slot with weather protection hood

Convenient solid aluminum integrated outgoing mail collection compartment prepped for USPS Arrow Lock

Click here for Specification List

Easy release handle to open master gate

Heavy-duty tenant cam lock with three keys

Rugged, weather-resistant powder coat finish in four architectural colors

Stainless steel hold open door catch on each side of master gate

Aluminum comb prevents mail fishing in outgoing mail collection compartment

Heavy duty cam latches through frame for added security

Matching Aluminum Pedestal (included)

Click here for Specification List

Wide Tenant Boxes Accommodate Larger Envelopes and Magazines

The Cluster Box Unit's tenant compartment size is known as a 4C Horizontal mailbox, which is the current USPS Standard for centralized mail delivery. Under 4C regulations, the tenant boxes are wider so that all mail, including larger envelopes and magazines, can be delivered flat without any folding. There is also enough room in each tenant box for small-sized parcels.

Shown above: the 16 Door CBU Tenant Box (3 in. high)

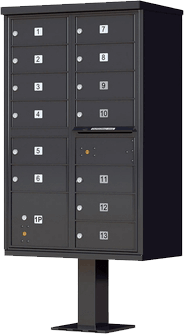

Shown above: the 13 Door CBU Tenant Box (4 - ¾ in. high)

Integrated Parcel Lockers

Among the many benefits of the CBU are the integrated parcel lockers for package delivery. If you receive a parcel, the Postal Carrier will conveniently leave the key to the parcel locker in your mailbox so that you can retrieve your package.

Security Tip: Once you enter the key and open the parcel locker the key cannot be removed. This is by design so that only the postal carrier can remove the parcel locker key. See video explanation below:

The matching CBU Pedestal - Easy Installation

*Disclaimer: the CBU anchor bolts, nuts, and/or vandal proof nuts for pedestal installation are specifically for installations where new concrete is being poured. Actual measurements between bolts should be confirmed prior to installat on. BudgetMailboxes.com is not liable for faulty installation due to inaccurate measurements.

All cluster mailboxes include an easy-to-install pedestal. The CBU Pedestal is constructed of heavy-duty, corrosion-resistant aluminum. Cluster mailboxes can be mounted on the included pedestal (or a base of your choice provided it meets USPS height specifications).

The pedestal comes with the needed stainless steel hardware for 1) mounting the pedestal to the cluster box and 2) mounting the unit to the concrete slab (using standard bolts). If you need to purchase anchor bolts for installation prior to pouring the concrete slab,* you can add these via the dropdown options above the Add to Cart button.

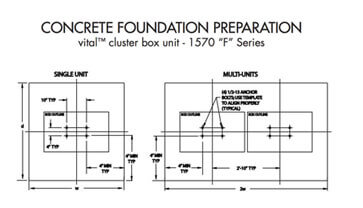

The CBU concrete pad spec sheet for installing the pedestal into new concrete is below.

For more details on pedestal installation, see our Installation Walkthrough.

What is included with the CBU?

The CBU cabinet and pedestal are packaged separately. Below is a list of components and hardware you will receive in each package.

Pedestal Package:

Template - guide to locate the pedestal base anchors
Rubber Pad - installed between the ground and the pedestal base
Pedestal - full assembled

Cabinet Package:

CBU mailboxes and parcel lockers in protective cabinet
Hardware kit in plastic bag (shipped inside the CBU compartment) that includes:
- Pedestal hardware
- Tenant keys
- Parcel keys and tags
- Installation manual
Cleaning instructions
Parcel door hardware (in a plastic bag inside the cabinet) - (2) McGard and (3) two-way screws, (4) Arrow Lock nuts, and panel lock covers attached with temporary plastic fastener

Heavy-Duty Cam Lock

Every tenant door on the Cluster Box Unit features a stainless steel heavy-duty five-pin cylinder cam lock with a dust and rain shield, along with three (3) keys. This simple yet effective locking mechanism provides the needed security to keep your mail safe until you retrieve it.

If you ever need to replace one of the cam locks, the process is very straightforward. Watch the video below to see how you can replace one of these locks within minutes.

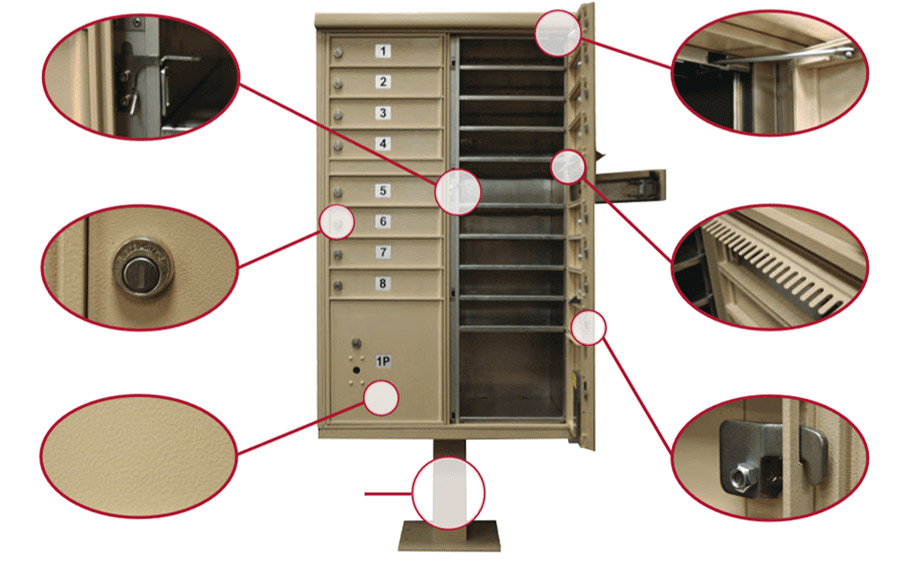

Opening the Master Doors & Locating Your Keys

Cluster Box Units (CBUs) are accessed from the front through two (2) easy-to-open master door panels.
Watch the video to see how to open the master doors and locate your keys (hint: the keys are taped to the inside of your box and are usually inside one of the parcel lockers).

See the corresponding video for more details.

Installation Walkthrough

Here, we go over the basics of installing your cluster box into existing concrete. If you plan to install your CBU into new concrete, please see our Installation Manual below.

Note: we recommend you watch the video at the bottom of this section to get an idea of the installation process.

The Pedestal

When you open up the carton for the pedestal, you have a gasket and a template also. Follow the steps below to install your CBU pedestal into the concrete pad:

Locate the center of the pad, put the mounting template down, and then start drilling your holes (using the template).
Drill down at least five and three-quarters with a half-inch drill bit.*
Make sure the surface is clear of rocks and debris.
Once the area is clean, place the gasket down on the concrete (this serves as a barrier between the cement and the pedestal).
Now place the pedestal on top of the gasket. If it's not level, you can add washers to the uneven side.
Once the pedestal is level, you can place your anchors, which are five and a half inches long by one-half inch wide.**
Place the anchors into the holes and torque the bolts down until they're tight using a socket wrench (you can also use an impact wrench to tighten the bolts).
Once you've tightened the bolts, double check that the pedestal is level.

* In the tutorial video, the installer drills down 4-1/2 inches.

** In the same tutorial video, the installer uses anchors that are 4-1/4 inches long. Our anchor bolts are 5-1/2 inches long, according to the manufacturer's minimum requirements.

The Cluster Box

Upon receiving the boxes, open them up to make sure there's no damage. Two people should place the box on the pedestal stand: one person can hold the box while the other person fastens it to the pedestal.

To fasten the box:

Inside the box, there will be access plates in the parcel locker(s). Go ahead and slide those out.
This will allow you to access the hardware to secure the box to the pedestal.
Place the washer on the bolt, followed by the nut. Do this to all four top bolts.
Ratchet the nuts with a nine-sixteenths (9/16) socket wrench.
Once these bolts are tight, return the access plates you removed from the parcel locker(s) in step one to cover the hardware.

Once complete, close up the box. Now, you will need to contact the post office to send someone to install their arrow locks for USPS access. The postman will install one arrow lock in the outgoing mail slot, and one in each parcel locker.

Installation Manual

Web version (opens a web page in a new tab)
Printable version (opens a PDF in a new tab)

Looking for a different document? See our full list of printable PDFs.

Florence Mailboxes - USPS License to manufacture CBUs

Who has a USPS License to manufacture CBUs?

Florence Mailboxes was founded in 1934 and has an exclusive license from the USPS to manufacture Cluster Box Units (CBUs) in the USA.

Key Features of the Florence Brand:

Pricing - Florence Mailboxes CBUs are the best-priced CBUs available online.
Lead times - Florence CBUs typically ship in 1-3 weeks. For custom numbering, units typically ship no earlier than 3 weeks after the order is placed.
Finishes - Florence offers CBUs in four architectural finishes: Sandstone, Postal Grey, Bronze, and Black.

Options - Florence Mailboxes CBUs can be purchased without pedestals (reducing the price), with Private Conversion Locks, and with Anchor Bolts for installation (prior pouring the concrete pad).

What types of customers purchase Cluster Mailboxes?

Over the past nine years, we have serviced all types of properties. CBUs are commonly installed at the following:

Apartment Complexes
Homeowners Associations
Municipalities
Universities
Commercial Developments
Small Businesses

We are proud to supply CBUs to some of the nation's most respected cities and companies. Here are some of our recent notable customers.

Shipping and Delivery Information

Shipping Box Dimensions & Weight

In the table below, you will find the estimated shipping box dimensions and shipping weight for each CBU type.

Capacity (type)	Est. box dimensions	Est. ship weight
8-Door CBU - Type I	31.5 in. W x 35 in. H x 19 in. D	144 lb.
12-Door CBU - Type II	31.5 in. W x 35 in. H x 19 in. D	144 lb.
13-Door CBU - Type IV	31.5 in. W x 49 in. H x 19 in. D	167 lb.
16-Door CBU - Type III	31.5 in. W x 49 in. H x 19 in. D	175 lb.
4-Door CBU - Type V	31.5 in. W x 35 in. H x 19 in. D	145 lb.
8-Door 4-Parcel - Type VI	31.5 in. W x 49 in. H x 19 in. D	176 lb.
Type I and II Pedestal	13 in. W x 29.5 in. H x 13 in. D	15 lb.
Type III and IV Pedestal	13 in. W x 15.5 in. H x 13 in. D	15 lb.

What to expect when your package arrives

We want your delivery experience to be as worry-free as possible. So, to that end, here are some important notes about what to expect when your cluster mailboxes are delivered:

The CBU Cabinet and Pedestal will ship in two (2) separate boxes (see table above).
The CBU and Pedestal will ship via Freight Carrier. They normally do not ship UPS or FedEx ground.
The Freight Carrier will call you at least one day in advance to schedule the delivery at your location.
You will need to be present at the time of delivery to inspect packaging and sign for the delivery.

Florence Mailboxes CBUs - A Comprehensive Comparison

Florence USPS Approved Cluster Box Units

Pre-configured units include built-in parcel lockers and outgoing mail collection for added convenience to be used alone or in large groupings to accommodate every project need.

Below we list each pre-configured model number along with its associated manufacturer. Refer to the table below for detailed specs.

USPS Approved CBU

Florence Mailboxes

Model #	Installed Height	Installed Width	Installed Depth	Pedestal Height	Weight (LBS)	Tenant Compartment Dimensions	Mailbox Compartments	Parcel Lockers

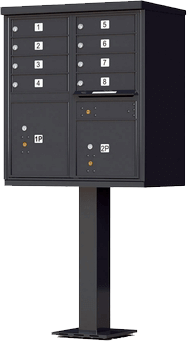

1570-8	62 in.	30 - ½ in.	18 in.	28 - ½ in.	125	3 in. H x 12 in. W x 15 in. D	8	2
1570-12	62 in.	30 - ½ in.	18 in.	28 - ½ in.	129	3 in. H x 12 in. W x 15 in. D	12	1

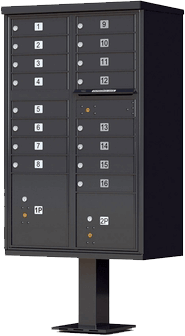

1570-16	62 in.	30 - ½ in.	18 in.	14 - ½ in.	162	3 in. H x 12 in. W x 15 in. D	16	2
1570-13	62 in.	30 - ½ in.	18 in.	14 - ½ in.	152	4 - ¾ in. H x 12 in. W x 15 in. D	13	1
1570-4T5	62 in.	30 - ½ in.	18 in.	28 - ½ in.	130	6 - ½ in. H x 12 in. W x 15 in. D	4	2

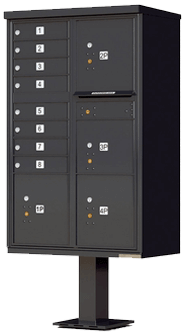

1570-8T6	62 in.	30 - ½ in.	18 in.	14 - ½ in.	163	3 in. H x 12 in. W x 15 in. D	8	4

Florence Mailboxes Outdoor Parcel Lockers - A Comprehensive Comparison

Florence USPS Approved Outdoor Parcel Lockers

Industry unique package delivery systems with key trapping locks can be used alone or with your CBU installation for better convenience. Below we list the available parcel lockers by both Florence Mailboxes.

Florence Mailboxes USPS Approved Parcel Lockers

Key Manufacturer Notes:

Florence Mailboxes is the Sole Source Supplier to the USPS, meaning they are the only manufacturer authorized to supply cluster box units, outdoor parcel lockers, replacement pedestals, and parts directly to the USPS.
Florence Mailboxes is also the only company to manufacture the 1590-T2 Parcel Locker with Four (4) instead of Two (2) Parcel Locker doors.
Private delivery models are also available.

Manufacturer	Model #	Installed Height	Installed Width	Installed Depth	Pedestal Height	Weight (LBS)	Parcel Compartment Dimensions	Parcel Lockers
Florence Mailboxes	1590-T1XX	62 in.	16 in.	18 in.	14 - ½ in.	100	19 - ⅝ in. H x 12 in. W x 15 in. D	2
Florence Mailboxes	1590-T2XX	62 in.	30 - ½ in.	18 in.	14 - ½ in.	139	19 - ⅝ in. H x 12 in. W x 15 in. D	4

Note: for Florence Mailboxes, exchange "XX" in Model #s above for two digit color references: Black (BK), Dark Bronze (DB), Sandstone (SD), Postal Grey (PG).

Florence Mailboxes Decorative Accessories - A Comprehensive Comparison

Vogue^TM Decorative Cluster Mailbox Accessories

These fashionable, snap-together toppers and pedestals put the final touch on your neighborhood or office cluster mailboxes. Choose from either the Classic or Traditional Styles below. Click the image to view the decorative configuration of your choice.

Model #	Installed Height	Installed Width	Installed Depth	Weight (LBS)	Tenant Compartment Dimensions	Mailbox Compartments	Parcel Lockers
1570-8V	65 - ⅛ in.	33 - ⅞ in.	21 - ⅜ in.	125	3 in. H x 12 in. W x 15 in. D	8	2
1570-12V	65 - ⅛ in.	33 - ⅞ in.	21 - ⅜ in.	129	3 in. H x 12 in. W x 15 in. D	12	1
1570-16V	65 - ⅛ in.	33 - ⅞ in.	21 - ⅜ in.	162	3 in. H x 12 in. W x 15 in. D	16	2
1570-13V	65 - ⅛ in.	33 - ⅞ in.	21 - ⅜ in.	152	4.75 in. H x 12 in. W x 15 in. D	13	1
1570-4T5V	65 - ⅛ in.	33 - ⅞ in.	21 - ⅜ in.	130	6.5 in. H x 12 in. W x 15 in. D	4	2
1570-8T6V	65 - ⅛ in.	33 - ⅞ in.	21 - ⅜ in.	163	3 in. H x 12 in. W x 15 in. D.	8	4
1590-T1V	65 - ⅛ in.	19 - ⅝ in.	21 - ⅜ in.	100	N/A	0	2
1590-T2V	65 - ⅛ in.	33 - ⅞ in.	21 - ⅜ in.	139	N/A	0	4
1570-8V2	71 - ⅜ in.	31 - ⅝ in.	18 - ½ in.	125	3 in. H x 12 in. W x 15 in. D.	8	2
1570-12V2	71 - ⅛ in.	31 - ⅝ in.	18 - ½ in.	129	3 in. H x 12 in. W x 15 in. D.	12	1
1570-16V2	71 - ⅜ in.	31 - ⅝ in.	18 - ½ in.	162	3 in. H x 12 in. W x 15 in. D.	16	2
1570-13V2	71 - ⅜ in.	31 - ⅝ in.	18 - ½ in.	152	4.75 in. H x 12 in. W x 15 in. D	13	1
1570-4T5V2	71 - ⅛ in.	31 - ⅝ in.	18 - ½ in.	130	6.5 in. H x 12 in. W x 15 in. D	4	2
1570-8T6V2	71 - ⅜ in.	31 - ⅝ in.	18 - ½ in.	163	3 in. H x 12 in. W x 15 in. D.	8	4
1590-T1V2	71 - ⅜ in.	14 - ½ in.	18 - ½ in.	100	N/A	0	2
1590-T2V2	71 - ⅜ in.	31 - ⅝ in.	18 - ½ in.	139	N/A	0	4
3308R	71 - ¾ in.	31 in.	18 - ½ in.	190	3 in. H x 12 in. W x 15 in. D.	8	2
3312R	71 - ¾ in.	31 in.	18 - ½ in.	190	3 in. H x 12 in. W x 15 in. D.	12	1
3316R	71 - ¾ in.	31 in.	18 - ½ in.	215	3 in. H x 12 in. W x 15 in. D.	16	2
3313R	71 - ¾ in.	31 in.	18 - ½ in.	205	4.75 in. H x 12 in. W x 15 in. D	13	1

CBU Care and Cleaning

Cluster Box Units are simple to maintain and clean. Due to the durable nature of aerospace-grade aluminum and the weather-proof powder-coating, these units will resist erosion, scratching and peeling year after year. However, proper care and cleaning will keep your unit looking pristine and prevent environmental buildup.

Basic Mailbox Cleaning

Use a soft cloth dampened with a mild detergent or a properly diluted, biodegradable, water-based cleanser such as Simple Green™.
Avoid using abrasive cleaners such as Comet™ or Brillo Pads™, as they may scratch the surface of your CBU.
Simply wipe off the surface from top to bottom to avoid run-down.
Rinse with plain water and dry with a clean, soft cloth.
Avoid cleaning during extreme temperature conditions.

For more CBU cleaning and maintenance tips, please view this article.

Benefits of the CBU

The benefits of centralized mail delivery:

1. Value - It costs less to install per resident than individual curbside mailboxes. Also, mail delivery can often begin even before residences are occupied.

2. Community - CBUs can help build stronger neighbor relationships and trust as residents meet and talk while retrieving their mail.

3. Safety - Highly visible centralized mail centers are safer than isolated delivery locations for residents and help provide greater protection from mail theft and mailbox vandalism.

Product Specifications
Weight	145 lbs
Shipping Info	Standard: usually ships in 3-5 days Custom: usually ships in 1-2 weeks
Brand	Budget Select
Number of Parcel Lockers	2 Parcel Lockers
Number of Mailbox Doors	4 Mailbox Doors
Mount Type	Pedestal Mount
Material	Aluminum
Mailbox Type	Cluster Mailbox
Dimensions	62 in. H x 30-1/2 in. W x 18 in. D
Security	Locking
Number of Tenants	4
Mail Capacity	Large Packages
Included Accessories	Includes Pedestal
Delivery Type	USPS Delivery
Access Type	Front Loading
Height	62"
Width	30-1/2"
Depth	18"
